NEWSCO 8" 7/8 Lobes 5.9 Stage Motor

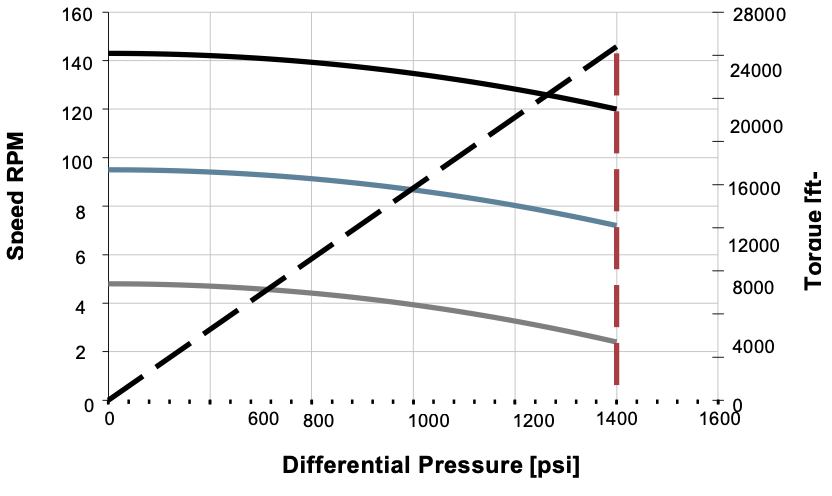

Torque Slope
15.92 ft-lb/psi
REV / Gal
0.153 rev/gal
0.040 rev/lpm
RPM
61-137 rpm
Flow range
400-900 gpm
1514-3407 lpm
Max Differential
1390 psi
9584 kPa
Max Torque
22170 ft. lbs
30059 N-m
Stall Differential
2180 psi
15031 kPa
Stall Torque
34409 lb-ft
46652 N-m
Max Weight on Bit
142000 lbs
631 kN
Weight
4600 pounds
2087 kilos
Bit to Stab
30.00 in
Bit to bend
68.00 in
Slick OD
8.00 in
Wear Pad OD
8.50 in
Overall length
446.00 in
Top Connection
As Requested
Bottom Connection
6 ⅝" Reg
Predicted Build Rates (Degrees per 100 ft/30 m)
| Deg. | Slick | Single Stabilizer | Double Stabilizer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Bend | Hole Size | Hole Size | Hole Size | ||||||
| Setting | 9 ⅞ | 10 ⅝ | 12 ¼ | 9 ⅞ | 10 ⅝ | 12 ¼ | 9 ⅞ | 10 ⅝ | 12 ¼ |
| 1.50 | 5.17 | 5.06 | 3.98 | 7.03 | 7.24 | 7.82 | 6.44 | 6.63 | 7.16 |
| 1.76 | 6.43 | 6.30 | 4.95 | 8.27 | 8.52 | 9.20 | 7.68 | 7.91 | 8.54 |
| 2.00 | 7.59 | 7.44 | 5.85 | 9.42 | 9.70 | 10.47 | 8.83 | 9.09 | 9.82 |
| 2.15 | 8.16 | 8.00 | 6.28 | 10.12 | 10.42 | 11.26 | 9.49 | 9.77 | 10.56 |
| 2.25 | 8.71 | 8.53 | 6.71 | 10.51 | 10.83 | 11.70 | 9.93 | 10.22 | 11.04 |
| 2.38 | 9.63 | 9.44 | 7.41 | 11.42 | 11.76 | 12.71 | 10.83 | 11.16 | 12.05 |
| 2.50 | 10.08 | 9.88 | 7.76 | 11.79 | 12.14 | 13.12 | 11.23 | 11.56 | 12.49 |
| 2.74 | 11.18 | 10.96 | 8.61 | 12.95 | 13.34 | 14.41 | 12.36 | 12.73 | 13.75 |
| 3.00 | 12.44 | 12.19 | 9.58 | 14.19 | 14.62 | 15.79 | 13.61 | 14.01 | 15.13 |
Suggested Max RPM Straight Well Sections
| Motor Size | Bit size | 0.00 | 0.38 | 0.75 | 1.15 | 1.50 | 1.75 | 1.83 | 2.00 | 2.15 | 2.25 | 2.38 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8" | 12 ¼ | 100 | 100 | 100 | 80 | 80 | 60 | 60 | 60 | 40 | 40 | 20 |
| 8" | 10 ⅝ | 100 | 100 | 100 | 80 | 80 | 50 | 50 | 50 | 40 | 40 | 20 |
| 8" | 9 ⅞ | 100 | 80 | 80 | 70 | 60 | 40 | 40 | 40 | 20 | 20 |
Suggested Max RPM Well Bore Build Sections
| Motor Size | Bit size | 0.00 | 0.38 | 0.75 | 1.15 | 1.50 | 1.75 | 1.83 | 2.00 | 2.15 | 2.25 | 2.38 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8" | 12 ¼ | 80 | 80 | 80 | 60 | 60 | 60 | 60 | 40 | 40 | 40 | 20 |
| 8" | 10 ⅝ | 80 | 80 | 50 | 50 | 40 | 40 | 40 | 40 | 40 | 40 | 20 |
| 8" | 9 ⅞ | 80 | 60 | 50 | 50 | 40 | 30 | 30 | 30 | 20 | 20 |
*The charts above display the maximum theoretical allowable rotation for optimal hole conditions. The RPM limits above are for optimal hole
conditions and normal drilling conditions and parameters. These should be reduced further when operating with high vibration, high rotary
torque, poor hole quality, high WOB, stick slip, hard stall events and other abnormal conditions.
