NEWSCO 7" 7/8 Lobes 8.5 Stage Motor

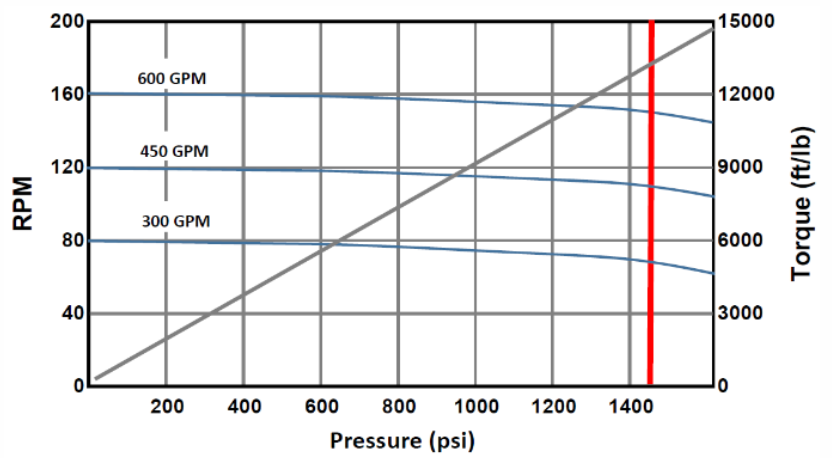

Torque Slope
9.78 ft-lb/psi
REV / Gal
0.245 rev/gal
0.065 rev/lpm
RPM
80-180 rpm
Flow range
400-750 gpm
1514-2839 lpm
Max Differential
2010 psi
13858 kPa
Max Torque
19690 ft. lbs
26696 N-m
Stall Differential
3150 psi
21718 kPa
Stall Torque
30810 lb-ft
41773 N-m
Max Weight on Bit
78000 lbs
346 kN
Weight
3500 pounds
1588 kilos
Bit to Stab
28.00 in
Bit to bend
56.00 in
Slick OD
7.00 in
Wear Pad OD
7.50 in
Overall length
412.00 in
Top Connection
As Requested
Bottom Connection
4 ½" Reg
Predicted Build Rates (Degrees per 100 ft/30 m)
| Deg. | Slick | Single Stabilizer | Double Stabilizer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Bend | Hole Size | Hole Size | Hole Size | ||||||
| Setting | 8 ½ | 8 ¾ | 9 ⅞ | 8 ½ | 8 ¾ | 9 ⅞ | 8 ½ | 8 ¾ | 9 ⅞ |
| 1.50 | 6.17 | 5.92 | 4.20 | 7.02 | 7.09 | 7.31 | 6.57 | 6.63 | 6.83 |
| 1.76 | 7.44 | 7.14 | 5.06 | 8.31 | 8.40 | 8.65 | 7.85 | 7.93 | 8.17 |
| 2.00 | 8.61 | 8.26 | 5.85 | 9.50 | 9.60 | 9.88 | 9.04 | 9.13 | 9.41 |
| 2.15 | 9.25 | 8.88 | 6.29 | 10.21 | 10.32 | 10.62 | 9.72 | 9.82 | 10.11 |
| 2.25 | 9.73 | 9.34 | 6.61 | 10.64 | 10.75 | 11.07 | 10.18 | 10.29 | 10.59 |
| 2.38 | 10.65 | 10.23 | 7.24 | 11.58 | 11.70 | 12.05 | 11.13 | 11.24 | 11.57 |
| 2.50 | 11.07 | 10.63 | 7.53 | 11.98 | 12.10 | 12.46 | 11.54 | 11.65 | 12.00 |
| 2.74 | 12.21 | 11.72 | 8.30 | 13.17 | 13.30 | 13.70 | 12.71 | 12.84 | 13.22 |
| 3.00 | 13.48 | 12.94 | 9.16 | 14.46 | 14.60 | 15.04 | 14.00 | 14.14 | 14.56 |
Suggested Max RPM Straight Well Sections
| Motor Size | Bit size | 0.00 | 0.38 | 0.75 | 1.15 | 1.50 | 1.75 | 1.83 | 2.00 | 2.15 | 2.25 | 2.38 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7" | 9 ⅞ | 100 | 100 | 100 | 80 | 80 | 60 | 60 | 60 | 40 | 40 | 20 |
| 7" | 8 ¾ | 100 | 100 | 100 | 80 | 80 | 50 | 50 | 50 | 30 | 20 | 20 |
| 7" | 8 ½ | 100 | 100 | 80 | 60 | 50 | 40 | 40 | 30 | 30 | 20 | 20 |
Suggested Max RPM Well Bore Build Sections
| Motor Size | Bit size | 0.00 | 0.38 | 0.75 | 1.15 | 1.50 | 1.75 | 1.83 | 2.00 | 2.15 | 2.25 | 2.38 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7" | 9 ⅞ | 80 | 80 | 60 | 60 | 50 | 50 | 50 | 40 | 40 | 30 | 30 |
| 7" | 8 ¾ | 80 | 80 | 50 | 50 | 40 | 40 | 40 | 30 | 30 | 30 | 20 |
| 7" | 8 ½ | 80 | 60 | 50 | 40 | 40 | 40 | 40 | 30 | 20 | 20 | 20 |
*The charts above display the maximum theoretical allowable rotation for optimal hole conditions. The RPM limits above are for optimal hole
conditions and normal drilling conditions and parameters. These should be reduced further when operating with high vibration, high rotary
torque, poor hole quality, high WOB, stick slip, hard stall events and other abnormal conditions.
