NEWSCO 7" 7/8 Lobes 5.7 Stage Motor

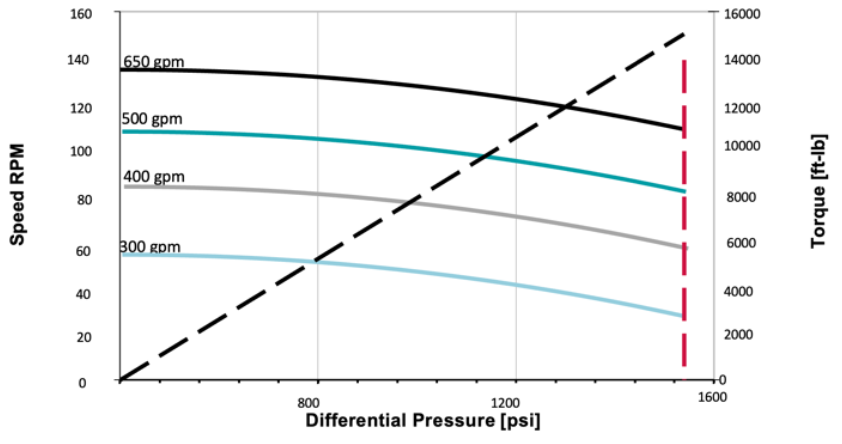

Torque Slope
10.63 ft-lb/psi
REV / Gal
0.228 rev/gal
0.060 rev/lpm
RPM
69-148 rpm
Flow range
300-650 gpm
1136-2461 lpm
Max Differential
1170 psi
8067 kPa
Max Torque
18180 ft. lbs
24649 N-m
Stall Differential
2680 psi
18478 kPa
Stall Torque
28500 lb-ft
38641 N-m
Max Weight on Bit
78000 lbs
346 kN
Weight
3200 pounds
1451 kilos
Bit to Stab
28.00 in
Bit to bend
56.00 in
Slick OD
7.00 in
Wear Pad OD
7.50 in
Overall length
378.00 in
Top Connection
As Requested
Bottom Connection
4 ½" Reg
Predicted Build Rates (Degrees per 100 ft/30 m)
| Deg. | Slick | Single Stabilizer | Double Stabilizer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Bend | Hole Size | Hole Size | Hole Size | ||||||
| Setting | 8 ½ | 8 ¾ | 9 ⅞ | 8 ½ | 8 ¾ | 9 ⅞ | 8 ½ | 8 ¾ | 9 ⅞ |
| 1.50 | 6.17 | 6.44 | 4.56 | 7.59 | 7.67 | 7.89 | 7.05 | 7.12 | 7.33 |
| 1.76 | 8.07 | 7.74 | 5.48 | 8.97 | 9.06 | 9.33 | 8.43 | 8.52 | 8.77 |
| 2.00 | 9.32 | 8.95 | 6.34 | 10.25 | 10.35 | 10.66 | 9.71 | 9.81 | 10.10 |
| 2.15 | 10.02 | 9.62 | 6.81 | 11.02 | 11.13 | 11.46 | 10.44 | 10.55 | 10.86 |
| 2.25 | 10.53 | 10.10 | 7.16 | 11.48 | 11.59 | 11.94 | 10.94 | 11.05 | 11.38 |
| 2.38 | 11.52 | 11.06 | 7.83 | 12.49 | 12.61 | 12.99 | 11.95 | 12.07 | 12.43 |
| 2.50 | 11.96 | 11.48 | 8.13 | 12.91 | 13.04 | 13.43 | 12.39 | 12.52 | 12.89 |
| 2.74 | 13.19 | 12.67 | 8.97 | 14.19 | 14.34 | 14.76 | 13.65 | 13.79 | 14.20 |
| 3.00 | 14.55 | 13.98 | 9.90 | 15.58 | 15.73 | 16.20 | 15.04 | 15.19 | 15.64 |
Suggested Max RPM Straight Well Sections
| Motor Size | Bit size | 0.00 | 0.38 | 0.75 | 1.15 | 1.50 | 1.75 | 1.83 | 2.00 | 2.15 | 2.25 | 2.38 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7" | 9 ⅞ | 100 | 100 | 100 | 80 | 80 | 60 | 60 | 60 | 40 | 40 | 20 |
| 7" | 8 ¾ | 100 | 100 | 100 | 80 | 80 | 50 | 50 | 50 | 30 | 20 | 20 |
| 7" | 8 ½ | 100 | 100 | 80 | 60 | 50 | 40 | 40 | 30 | 30 | 20 | 20 |
Suggested Max RPM Well Bore Build Sections
| Motor Size | Bit size | 0.00 | 0.38 | 0.75 | 1.15 | 1.50 | 1.75 | 1.83 | 2.00 | 2.15 | 2.25 | 2.38 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7" | 9 ⅞ | 80 | 80 | 60 | 60 | 50 | 50 | 50 | 40 | 40 | 30 | 30 |
| 7" | 8 ¾ | 80 | 80 | 50 | 50 | 40 | 40 | 40 | 30 | 30 | 30 | 20 |
| 7" | 8 ½ | 80 | 60 | 50 | 40 | 40 | 40 | 40 | 30 | 20 | 20 | 20 |
*The charts above display the maximum theoretical allowable rotation for optimal hole conditions. The RPM limits above are for optimal hole
conditions and normal drilling conditions and parameters. These should be reduced further when operating with high vibration, high rotary
torque, poor hole quality, high WOB, stick slip, hard stall events and other abnormal conditions.
