NEWSCO 7" 7/8 Lobes 5.0 Stage Motor

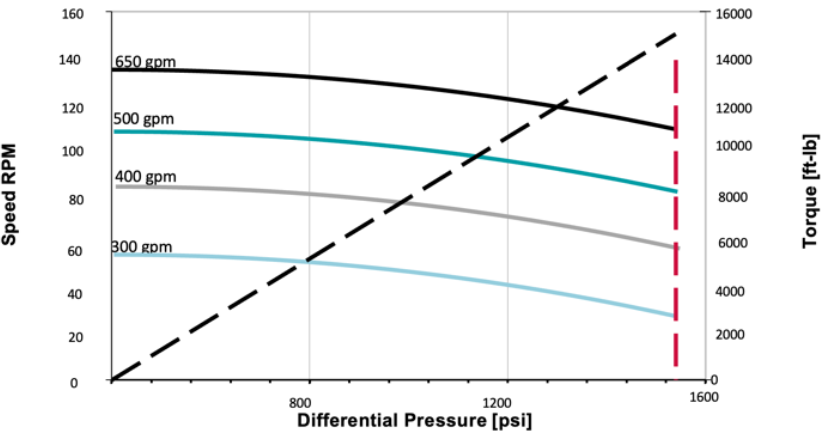

Torque Slope
9.14 ft-lb/psi
REV / Gal
0.266 rev/gal
0.070 rev/lpm
RPM
80-159 rpm
Flow range
300-600 gpm
1136-2271 lpm
Max Differential
1170 psi
8067 kPa
Max Torque
10690 ft. lbs
14494 N-m
Stall Differential
1840 psi
12686 kPa
Stall Torque
16820 lb-ft
22805 N-m
Max Weight on Bit
18000 lbs
80 kN
Weight
3100 pounds
1406 kilos
Bit to Stab
28.00 in
Bit to bend
56.00 in
Slick OD
7.00 in
Wear Pad OD
7.50 in
Overall length
306.00 in
Top Connection
As Requested
Bottom Connection
4 ½" Reg
Predicted Build Rates (Degrees per 100 ft/30 m)
| Deg. | Slick | Single Stabilizer | Double Stabilizer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Bend | Hole Size | Hole Size | Hole Size | ||||||
| Setting | 8 ½ | 8 ¾ | 9 ⅞ | 8 ½ | 8 ¾ | 9 ⅞ | 8 ½ | 8 ¾ | 9 ⅞ |
| 1.50 | 8.22 | 7.89 | 5.59 | 9.15 | 9.24 | 9.52 | 8.35 | 8.43 | 8.68 |
| 1.76 | 9.83 | 9.44 | 6.69 | 10.79 | 10.90 | 11.22 | 9.99 | 10.09 | 10.39 |
| 2.00 | 11.32 | 10.87 | 7.70 | 12.31 | 12.43 | 12.80 | 11.50 | 11.62 | 11.96 |
| 2.15 | 12.17 | 11.68 | 8.28 | 13.23 | 13.36 | 13.76 | 12.37 | 12.49 | 12.86 |
| 2.25 | 12.75 | 12.24 | 8.67 | 13.76 | 13.90 | 14.31 | 12.96 | 13.09 | 13.48 |
| 2.38 | 13.93 | 13.37 | 9.47 | 14.96 | 15.11 | 15.56 | 14.16 | 14.30 | 14.72 |
| 2.50 | 14.44 | 13.86 | 9.82 | 15.46 | 15.61 | 16.07 | 14.68 | 14.83 | 15.27 |
| 2.74 | 15.91 | 15.28 | 10.82 | 16.98 | 17.15 | 17.66 | 16.18 | 16.34 | 16.83 |
| 3.00 | 17.53 | 16.83 | 11.92 | 18.63 | 18.81 | 19.32 | 17.82 | 18.00 | 18.54 |
Suggested Max RPM Straight Well Sections
| Motor Size | Bit size | 0.00 | 0.38 | 0.75 | 1.15 | 1.50 | 1.75 | 1.83 | 2.00 | 2.15 | 2.25 | 2.38 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7" | 9 ⅞ | 100 | 100 | 100 | 80 | 80 | 60 | 60 | 60 | 40 | 40 | 20 |
| 7" | 8 ¾ | 100 | 100 | 100 | 80 | 80 | 50 | 50 | 50 | 30 | 20 | 20 |
| 7" | 8 ½ | 100 | 100 | 80 | 60 | 50 | 40 | 40 | 30 | 30 | 20 | 20 |
Suggested Max RPM Well Bore Build Sections
| Motor Size | Bit size | 0.00 | 0.38 | 0.75 | 1.15 | 1.50 | 1.75 | 1.83 | 2.00 | 2.15 | 2.25 | 2.38 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7" | 9 ⅞ | 80 | 80 | 60 | 60 | 50 | 50 | 50 | 40 | 40 | 30 | 30 |
| 7" | 8 ¾ | 80 | 80 | 50 | 50 | 40 | 40 | 40 | 30 | 30 | 30 | 20 |
| 7" | 8 ½ | 80 | 60 | 50 | 40 | 40 | 40 | 40 | 30 | 20 | 20 | 20 |
*The charts above display the maximum theoretical allowable rotation for optimal hole conditions. The RPM limits above are for optimal hole
conditions and normal drilling conditions and parameters. These should be reduced further when operating with high vibration, high rotary
torque, poor hole quality, high WOB, stick slip, hard stall events and other abnormal conditions.
