NEWSCO 6 3/4" 7/8 Lobes 6.4 Stage Motor

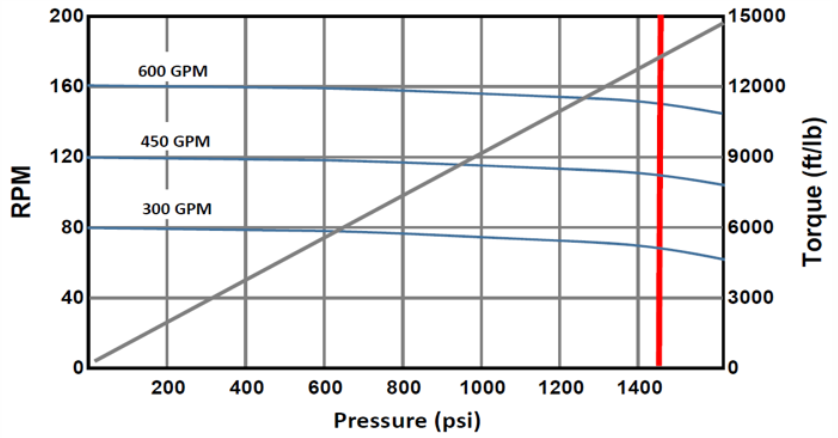

Torque Slope
9.06 ft-lb/psi
REV / Gal
0.270 rev/gal
0.071 rev/lpm
RPM
80-176 rpm
Flow range
300-650 gpm
1136-2461 lpm
Max Differential
1510 psi
10411 kPa
Max Torque
13684 ft. lbs
18553 N-m
Stall Differential
2370 psi
16341 kPa
Stall Torque
21471 lb-ft
29111 N-m
Max Weight on Bit
78000 lbs
346 kN
Weight
2800 pounds
1270 kilos
Bit to Stab
20.00 in
Bit to bend
52.00 in
Slick OD
6.75 in
Wear Pad OD
7.25 in
Overall length
365.00 in
Top Connection
As Requested
Bottom Connection
4 ½" Reg
Predicted Build Rates (Degrees per 100 ft/30 m)
| Deg. | Slick | Single Stabilizer | Double Stabilizer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Bend | Hole Size | Hole Size | Hole Size | ||||||
| Setting | 8 ½ | 8 ¾ | 9 ⅞ | 8 ½ | 8 ¾ | 9 ⅞ | 8 ½ | 8 ¾ | 9 ⅞ |
| 1.50 | 7.05 | 6.77 | 4.79 | 8.36 | 8.44 | 8.69 | 7.56 | 6.93 | 7.14 |
| 1.76 | 8.58 | 8.24 | 5.83 | 9.89 | 9.99 | 10.29 | 9.08 | 8.25 | 8.49 |
| 2.00 | 9.99 | 9.59 | 6.79 | 11.29 | 11.40 | 11.74 | 10.49 | 9.46 | 9.74 |
| 2.15 | 10.74 | 10.31 | 7.30 | 12.14 | 12.26 | 12.62 | 11.28 | 10.17 | 10.47 |
| 2.25 | 11.34 | 10.89 | 7.71 | 12.64 | 12.77 | 13.15 | 11.84 | 10.62 | 10.94 |
| 2.38 | 12.46 | 11.96 | 8.47 | 13.76 | 13.90 | 14.31 | 12.95 | 11.58 | 11.93 |
| 2.50 | 12.98 | 12.46 | 8.83 | 14.22 | 14.36 | 14.79 | 13.45 | 12.00 | 12.35 |
| 2.74 | 13.15 | 12.63 | 8.95 | 15.63 | 15.79 | 16.26 | 14.83 | 13.20 | 13.60 |
| 3.00 | 14.61 | 14.02 | 9.93 | 17.16 | 17.33 | 17.85 | 16.35 | 14.52 | 14.95 |
Suggested Max RPM Straight Well Sections
| Motor Size | Bit size | 0.00 | 0.38 | 0.75 | 1.15 | 1.50 | 1.75 | 1.83 | 2.00 | 2.15 | 2.25 | 2.38 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 ¾" | 9 ⅞ | 100 | 100 | 100 | 80 | 80 | 60 | 60 | 60 | 40 | 40 | 20 |
| 6 ¾" | 8 ¾ | 100 | 100 | 100 | 80 | 80 | 50 | 50 | 50 | 40 | 40 | 20 |
| 6 ¾" | 8 ½ | 100 | 100 | 100 | 80 | 80 | 50 | 50 | 50 | 20 | 20 |
Suggested Max RPM Well Bore Build Sections
| Motor Size | Bit size | 0.00 | 0.38 | 0.75 | 1.15 | 1.50 | 1.75 | 1.83 | 2.00 | 2.15 | 2.25 | 2.38 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 ¾" | 9 ⅞ | 80 | 80 | 60 | 50 | 40 | 40 | 40 | 40 | 40 | 40 | 20 |
| 6 ¾" | 8 ¾ | 80 | 80 | 50 | 50 | 40 | 40 | 40 | 40 | 40 | 40 | 20 |
| 6 ¾" | 8 ½ | 80 | 80 | 50 | 40 | 40 | 30 | 30 | 30 | 20 | 20 |
*The charts above display the maximum theoretical allowable rotation for optimal hole conditions. The RPM limits above are for optimal hole
conditions and normal drilling conditions and parameters. These should be reduced further when operating with high vibration, high rotary
torque, poor hole quality, high WOB, stick slip, hard stall events and other abnormal conditions.
