NEWSCO 5" 6/7 Lobes 9.0 Stage EVENTEK Motor

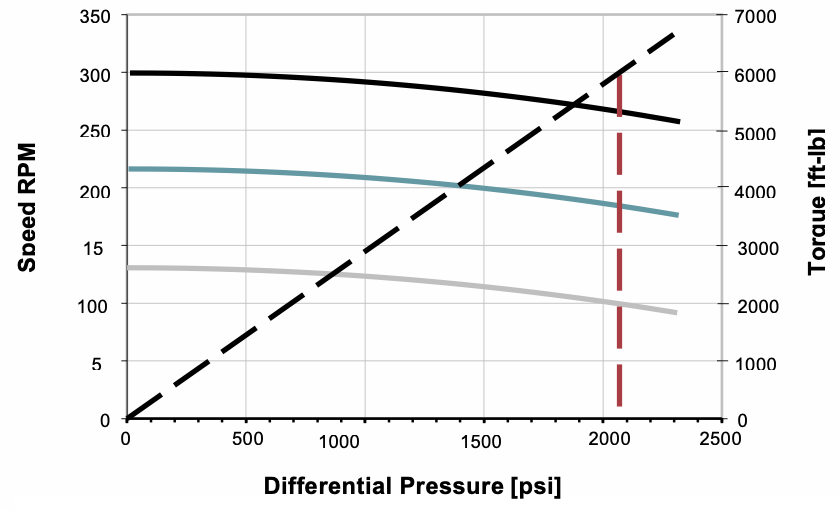

Torque Slope
2.92 ft-lb/psi
REV / Gal
0.860 rev/gal
0.227 rev/lpm
RPM
130-300 rpm
Flow range
150-350 gpm
568-1325 lpm
Max Differential
2120 psi
14617 kPa
Max Torque
6180 ft. lbs
8379 N-m
Stall Differential
4760 psi
32819 kPa
Stall Torque
13900 lb-ft
18846 N-m
Max Weight on Bit
55000 lbs
244 kN
Weight
1600 pounds
726 kilos
Bit to Stab
26.00 in
Bit to bend
45.00 in
Slick OD
5.00 in
Wear Pad OD
5.50 in
Overall length
351.00 in
Top Connection
As Requested
Bottom Connection
3 ½" Reg
Predicted Build Rates (Degrees per 100 ft/30 m)
| Deg. | Slick | Single Stabilizer | Double Stabilizer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Bend | Hole Size | Hole Size | Hole Size | ||||||
| Setting | 6 | 6 ¾ | 6 ⅛ | 6 | 6 ¾ | 6 ⅛ | 6 | 6 ¾ | 6 ⅛ |
| 1.50 | 8.09 | 6.96 | 7.84 | 9.09 | 9.36 | 9.12 | 8.67 | 8.93 | 8.70 |
| 1.76 | 9.74 | 8.38 | 9.45 | 10.74 | 11.06 | 10.78 | 10.32 | 10.63 | 10.36 |
| 2.00 | 11.26 | 9.69 | 10.92 | 12.26 | 12.63 | 12.31 | 11.84 | 12.20 | 11.89 |
| 2.15 | 11.26 | 9.69 | 10.92 | 12.26 | 12.63 | 12.31 | 11.84 | 12.20 | 11.89 |
| 2.25 | 12.72 | 10.94 | 12.34 | 13.72 | 14.13 | 13.78 | 13.30 | 13.70 | 13.35 |
| 2.38 | 13.93 | 11.98 | 13.51 | 14.93 | 15.37 | 14.99 | 14.51 | 14.94 | 14.57 |
| 2.50 | 14.47 | 12.44 | 14.04 | 15.43 | 15.89 | 15.49 | 15.02 | 15.47 | 15.08 |
| 2.74 | 15.96 | 13.73 | 15.48 | 16.96 | 17.47 | 17.03 | 16.54 | 17.04 | 16.61 |
| 3.00 | 17.61 | 15.15 | 17.08 | 18.61 | 19.17 | 18.68 | 18.19 | 18.74 | 18.26 |
Suggested Max RPM Straight Well Sections
| Motor Size | Bit size | 0.00 | 0.38 | 0.75 | 1.15 | 1.50 | 1.75 | 1.83 | 2.00 | 2.15 | 2.25 | 2.38 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5" | 6 ¾ | 100 | 100 | 100 | 90 | 80 | 80 | 75 | 55 | 50 | 35 | 20 |
| 5" | 6 ½ | 100 | 100 | 100 | 80 | 75 | 75 | 70 | 50 | 45 | 35 | 20 |
| 5" | 6 ¼ | 100 | 100 | 95 | 75 | 70 | 70 | 70 | 45 | 40 | 30 | 20 |
| 5" | 6 ⅛ | 90 | 95 | 90 | 65 | 65 | 65 | 65 | 40 | 30 | 20 | 20 |
| 5" | 6 | 90 | 90 | 85 | 60 | 60 | 60 | 60 | 35 | 30 |
Suggested Max RPM Well Bore Build Sections
| Motor Size | Bit size | 0.00 | 0.38 | 0.75 | 1.15 | 1.50 | 1.75 | 1.83 | 2.00 | 2.15 | 2.25 | 2.38 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5" | 6 ¾ | 70 | 70 | 50 | 50 | 40 | 40 | 40 | 40 | 30 | 30 | 20 |
| 5" | 6 ½ | 70 | 70 | 50 | 50 | 40 | 40 | 40 | 40 | 30 | 30 | 20 |
| 5" | 6 ¼ | 70 | 70 | 50 | 40 | 40 | 40 | 40 | 40 | 30 | 30 | 20 |
| 5" | 6 ⅛ | 70 | 70 | 50 | 40 | 40 | 40 | 30 | 30 | 30 | 20 | 20 |
| 5" | 6 | 70 | 70 | 50 | 40 | 40 | 30 | 30 | 20 | 20 |
*The charts above display the maximum theoretical allowable rotation for optimal hole conditions. The RPM limits above are for optimal hole
conditions and normal drilling conditions and parameters. These should be reduced further when operating with high vibration, high rotary
torque, poor hole quality, high WOB, stick slip, hard stall events and other abnormal conditions.
